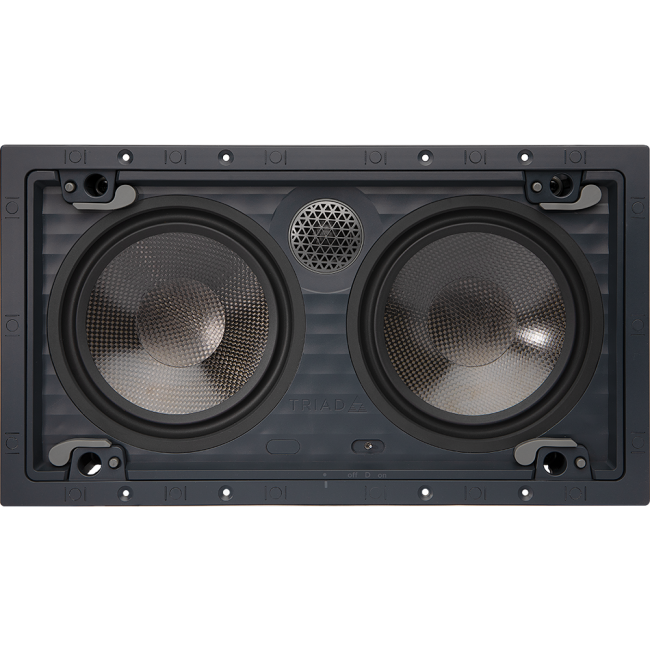

Triad PDX Series 4 In-Wall LCR Speaker- 6" TS-PDX-IW64-LCR
Color: White
Play Product Video
In-Wall LCR Speaker
SELLING PRICE
$524.20
Availability:
In stock
SKU
TS-PDX-IW64-LCR
MSRP: $700.05
YOU SAVE: $175.85
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
Frequency Response 45Hz - 23KHz
Cutout Dimensions (W x H) 14.4 in. x 7.6 in. (366 x 193mm)
Dimensions (W x H x D) 15.32 in. x 8.56 in. (389 x 217mm)
Mounting Dog Type: Push Lock by Swarm Dog Clamping Range: 3/8" to 1-1/8"
Operating Temperature -20C to +50C
Weight w/grille: 7.74lbs (3.52Kg)
Crossover Frequency 2.5kHz Crossover type/slope: Linkwitz-Riley / 12dB
Speaker Dispersion Angle 110° H / 90° V
Nominal Impedance 9.5 Ohms 9.5 Ohms Minimal impedance: 8 Ohms
Sensitivity (dB) @ 1W/1M: 90dB
Tweeter Size: 1" (25mm) Material: Teteron Dome Tweeter Mechanism: Pivoting +/- 12.7°
Woofer Size: 6-1/2" (160mm) Cone Material: Carbon Fiber Surround Material: NBR (Buna-N rubber) Woofer Voice Coil Diameter: 1-1/4" Magnet type: Ferrite Woofer Excursion (Peak to Peak): 8.5mm
Mounting Depth w/ Enclosure: 3.8" (96.5mm) w/o Enclosure: 3.6" (91mm)
Optimal Air Volume Behind Speaker 20-25L
NCB Size TS-PDX-NCB-IWLCR6
Enclosure TS-PDX-ENCL-IWLCR6
Power Handling Power Handling (Max): (1.33x RMS): 200W Power Handling (RMS): 150W
Cutout Dimensions (W x H) 14.4 in. x 7.6 in. (366 x 193mm)
Dimensions (W x H x D) 15.32 in. x 8.56 in. (389 x 217mm)
Mounting Dog Type: Push Lock by Swarm Dog Clamping Range: 3/8" to 1-1/8"
Operating Temperature -20C to +50C
Weight w/grille: 7.74lbs (3.52Kg)
Crossover Frequency 2.5kHz Crossover type/slope: Linkwitz-Riley / 12dB
Speaker Dispersion Angle 110° H / 90° V
Nominal Impedance 9.5 Ohms 9.5 Ohms Minimal impedance: 8 Ohms
Sensitivity (dB) @ 1W/1M: 90dB
Tweeter Size: 1" (25mm) Material: Teteron Dome Tweeter Mechanism: Pivoting +/- 12.7°
Woofer Size: 6-1/2" (160mm) Cone Material: Carbon Fiber Surround Material: NBR (Buna-N rubber) Woofer Voice Coil Diameter: 1-1/4" Magnet type: Ferrite Woofer Excursion (Peak to Peak): 8.5mm
Mounting Depth w/ Enclosure: 3.8" (96.5mm) w/o Enclosure: 3.6" (91mm)
Optimal Air Volume Behind Speaker 20-25L
NCB Size TS-PDX-NCB-IWLCR6
Enclosure TS-PDX-ENCL-IWLCR6
Power Handling Power Handling (Max): (1.33x RMS): 200W Power Handling (RMS): 150W
